Alloy Steel Boiler Manifold Headers Water Cooled For Steam Boiler Economizer

Basic Information

Place of Origin:	China
Brand Name:	Dehai Boiler
Certification:	ISO9001 , SGS , ABS , ASME
Model Number:	Boiler Header

Minimum Order Quantity:	5 Tons
Price:	Negotiable
Packaging Details:	Seaworthy packing
Delivery Time:	50 Days
Payment Terms:	L/C, T/T
Supply Ability:	500 Tons / Month

Get Best Price Contact Now

Surface Treatment:	Painted	Style:	CFB Boiler
Condition:	New	Output:	Steam
Specification:	As Per Drawing	Place Of Origin:	Jiangsu, China (Mainland)
High Light:	low loss header , copper manifold

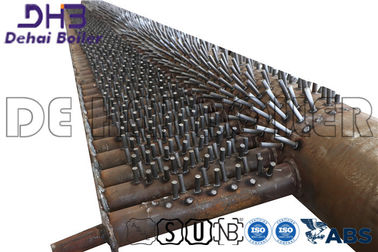

Alloy Steel Water Header for Steam Boiler Economizer Water Cooled Wall Boiler Spare Parts

Alloy Steel Water Header Arrangement

1. Arrange convection heating surface of evaporator at the end part of boiler and total 46 ranks and made up by φ42×3 piping.

2. Arrange 5 piping circulation. The lower header is φ426×16 and the collecting piping at top is φ76×3. The whole system is natural circulation and hanging arrangement to increase boiler evaporating heating surface.

Boiler Medium Header Features

1. Headers form an important part of all types of boilers. Steam from the generating tubes is collected in headers which are therefore always under pressure. This pressure may vary from 300 psi to 2000 psi.

2. Since headers are always under pressure, the utmost care is taken by us while fabricating them. Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the headers
3. Bevelling and weld preparation of stubs duly tack-welded to the main body of the header are first shown to Chief Inspector of Boilers for his approval and once again the stubs fully welded with main body are shown to Chief Inspector of Boilers under hydraulic pressure, varying from 1000 to 3000 psi as required by the specifications.
4. The headers are stamped by Chief Inspector of Boilers before they leave our manufacturing plant. We also weld skubolets and weldolets in place of stubs.

Specification

Diameter(OD)	¢76mm~¢914mm
Length(Max)	23000mm
Temperature(℃)	300~1500

Product Name	Membrane Water Wall Header for boiler
Applied Area	boiler membrane water wall
Body Material	- Carbon Steel : 20#, 20G, A192, A-1 - Alloy Steel : 15CrMoG, 12Cr1MoVG, T11, T22
Nozzle Tube Material	As per design
Standard	China GB, ASME
Manufacturer Grade	China A Grade, ABS Certificated, TUV Certificated
Working Temperature	depends on material
Working Pressure	1.6 MPa ~ 15 MPa
Body Thickness	As per design
Body Diameter	As per design
Body Length	As per design
Welding	SMAW, SAW, GTAW (TIG)
Welding NDT	- Body : 100% RT or 100% UT - Nozzle tube > Φ108 : > 20% MT, 100% UT - Nozzle tube <= Φ108 : > 20% MT

Preparation

Alloy Steel Boiler Manifold Headers Water Cooled For Steam Boiler Economizer 0

Mater traceability(Color transporation)

Alloy Steel Boiler Manifold Headers Water Cooled For Steam Boiler Economizer 1

Detailed Drawing

Prewelding(GTAW)
